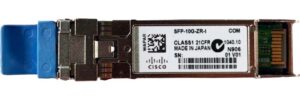

SFP-10G-ZR-I
SFP-10G-ZR-I
Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF
SFP-10G-ZR-I
GENERALES
Detalles del Módulo SFP-10G-ZR-I
- Número de parte: SFP-10G-ZR-I
- Descripción corta: Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF
- Tipo dispositivo: SFP+ Transceiver Module
- Marca: Cisco Systems
ESPECIFICACIONES TÉCNICAS
Especificaciones Técnicas
- Data Rate: 10 Gbps
- Form Factor: SFP+
- Reach: 70km
- Cable Type: Duplex Fiber
- Media: SMF
- Connector Type: LC (PC or UPC)
- Transceiver Type: Optic
- Case Temperature: -28 to 85C
- DOM Capable: Yes
- Standard: IEEE 10GBASE-ZR
- Transceiver Notes: At a cold start of -40⁰C; the transceiver will be operational except optical traffic is not supported from -40⁰ to -28⁰C, all other low speed features (DOM, I2C, etc.) are operational. The module is fully operational from -28⁰C to 85⁰C.
Peso y Dimensiones
- Alto x Ancho x Profundidad: 8.5 x 13.4 x 56.5 mm
- Peso: 75 gramos
CISCO NETWORK SWICHES
Cisco network switches compatibles:
NCS5500, NCS540, IE9300.
MODELOS DE SWITCH CISCO
Modelo de Switch Cisco compatibles:
NCS-5501, NCS-5501-SE, NC55-MOD-A-S, NCS-55A2-MOD-S, NC55-MOD-A-SE-S, NCS-55A2-MOD-HD-S, NCS-55A2-MOD-SE-S, NCS-55A2-MOD-HX-S, NCS-55A2-MOD-SE-H-S, NCS-55A1-48Q6H, NCS-55A1-24Q6H-S, NCS-55A1-24Q6H-SS, NC55-32T16Q4H-A, NCS-57C3-MOD-S, NCS-57C3-MOD-SE-S, NC57-MOD-S, NCS-57C1-48Q6-SYS, NC57-MPA-12L-S, NC57-48Q2D-S, NC57-48Q2D-SE-S.
Modelo de Switch Cisco:
NCS-57C1-48Q6D-S, N540-24Z8Q2C-SYS, N540-ACC-SYS, N540X-ACC-SYS, N540X-16Z4G8Q2C-A, N540X-16Z4G8Q2C-D, N540-28Z4C-SYS-A, N540-28Z4C-SYS-D, N540X-12Z16G-SYS-A, N540X-12Z16G-SYS-D, N540-12Z20G-SYS-A, N540-12Z20G-SYS-D, N540X-8Z16G-SYS-A, N540X-8Z16G-SYS-D, N540X-6Z18G-SYS-A, N540X-6Z18G-SYS-D, N540-FH-CSR-SYS, N540X-4Z14G2Q-A, N540X-4Z14G2Q-D, N540-24Q8L2DD-SYS.
Modelo de Switch Cisco:
N540-FH-AGG-SYS, N540-6Z18G-SYS-A, N540-6Z18G-SYS-D, N540-6Z14S-SYS-D, N540X-16Z8Q2C-D, IE-9320-22S2C4X-E, IE-9320-22S2C4X-A, IE-9320-24T4X-E, IE-9320-24T4X-A, IE-9320-24P4X-E, IE-9320-24P4X-A, IE-9320-16P8U4X-E, IE-9320-16P8U4X-A.
